Shimano GRX BR-RX810 Hydraulic Flat Mount Disc Brake Caliper – Front

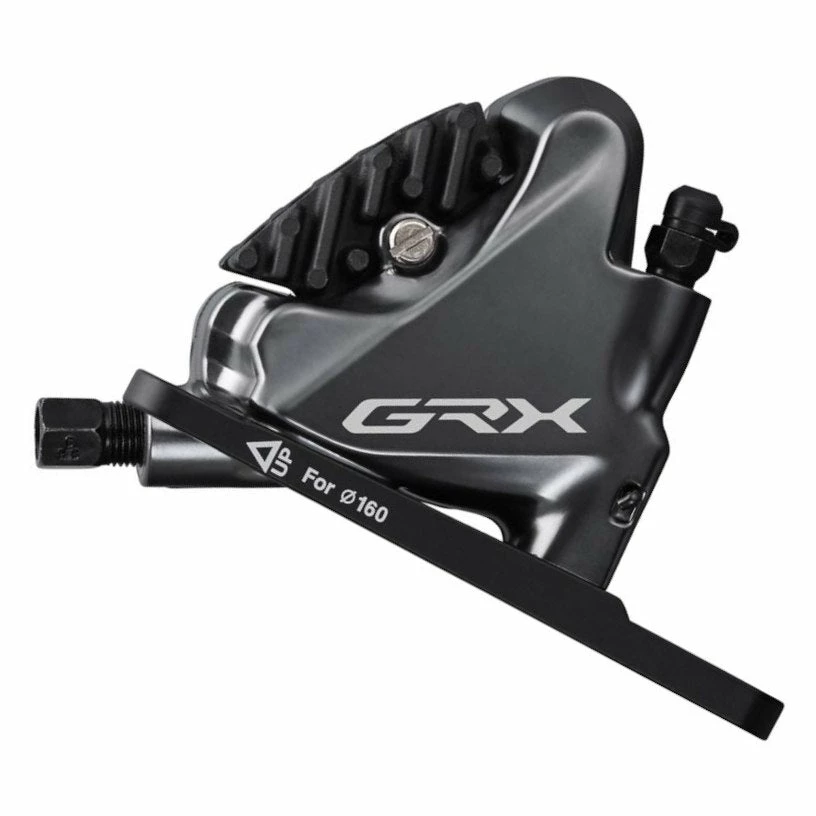

Shimano GRX BR-RX810 disc brake caliper

Never hesitate to tackle rough surfaces with the hydraulic Shimano GRX BR-RX810 caliper. In doing soIce Techensure excellent heat dissipation while the BR-RX810’s 2 ceramic pistons guarantee excellent braking performance under all conditions. The Flat Mount system makes it possible to attach the disc brake caliper directly at frame or fork. Trouble-free and simple maintenance is provided by the provenOne Way Bleedingconcept and theEasy Hose Joint Systemwhich simplifies brake hose exchanges (brake hose sold separately).

Ice Technologies

The fading which can occur to disc brake rotor and pad when braking on a long downhill ride for instance, has a negative impact on the braking performance. Shimano has adopted Ice-Tech disc brake rotor and brake pad to realize the cooling technology for consistent performance. The disc brake rotor blade which has a 3 layer-sandwich structure of stainless steel, aluminum and stainless steel, provides better radiation performance achieving a lower surface temperature. Aluminium cooling fins have been adopted the brake pad improving the radiation performance even further. In combination the disc brake rotor blade and the radiator fin provide long pad life, less noise, less fade and lightweight.

J-Kit (Easy Hose Joint System)

At brake systems with J-Kit hose joint the brake lever features an integrated olive what makes an easy brake hose installation and removal possible.
Brake fluid: mineral oil
Brake hose: recommended: SM-BH90-JK-SSR, SM-BH90-J-SSR (optional)
Brake lever: recommended: BL-RX810, ST-RX810, ST-RX815 (optional)
Braking pads: L03A Resin with cooling fins (included)
K03S Resin, K04S Metal, L04C-Metal with cooling fins (optional)
Disc: recommended: SM-RT800, RT-MT800 (optional)
Included in delivery: incl. L03A Resin brake pads with cooling fins and disc adapter (for ∅ 160 mm)
Manufacturer item code: IBRRX810F6RF
Material: caliper: aluminum (painted)
piston: ceramic
