MTB Ibis Ripmo AF Mountain Bike

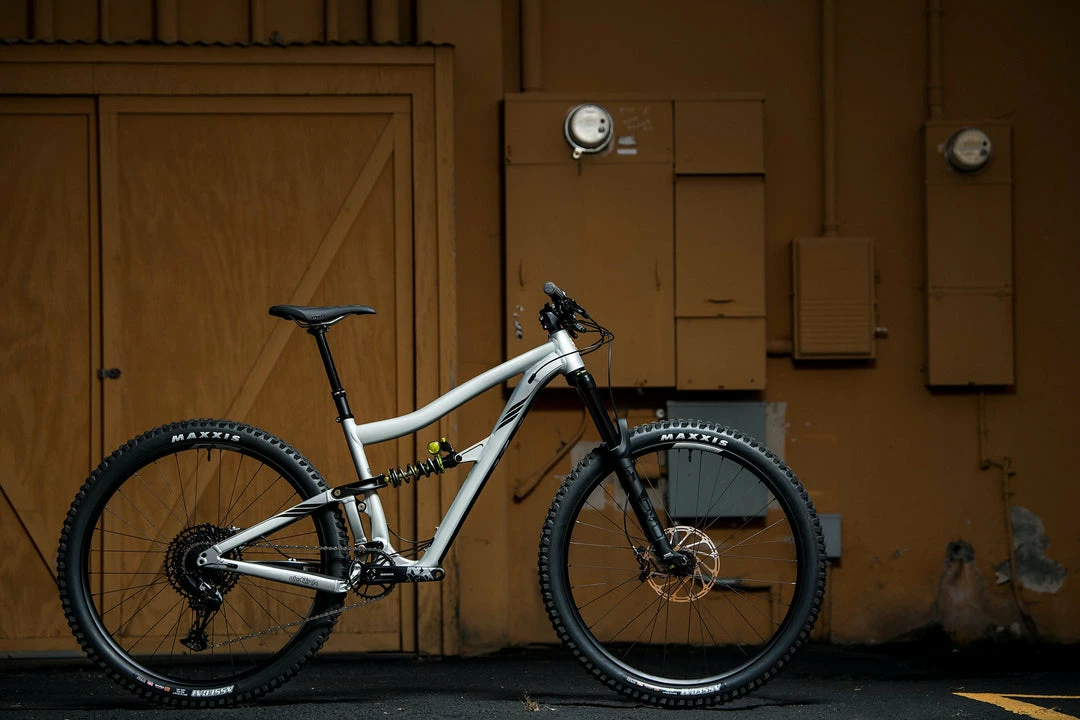

Ibis Ripmo AF Mountain Bike

Price for full bikes will range from $7,500 to $16,700 depending on groupset and setup of choice.

Call or visit our Chapter 2 Cycle Store to check on stock availability and for more information on the bike.

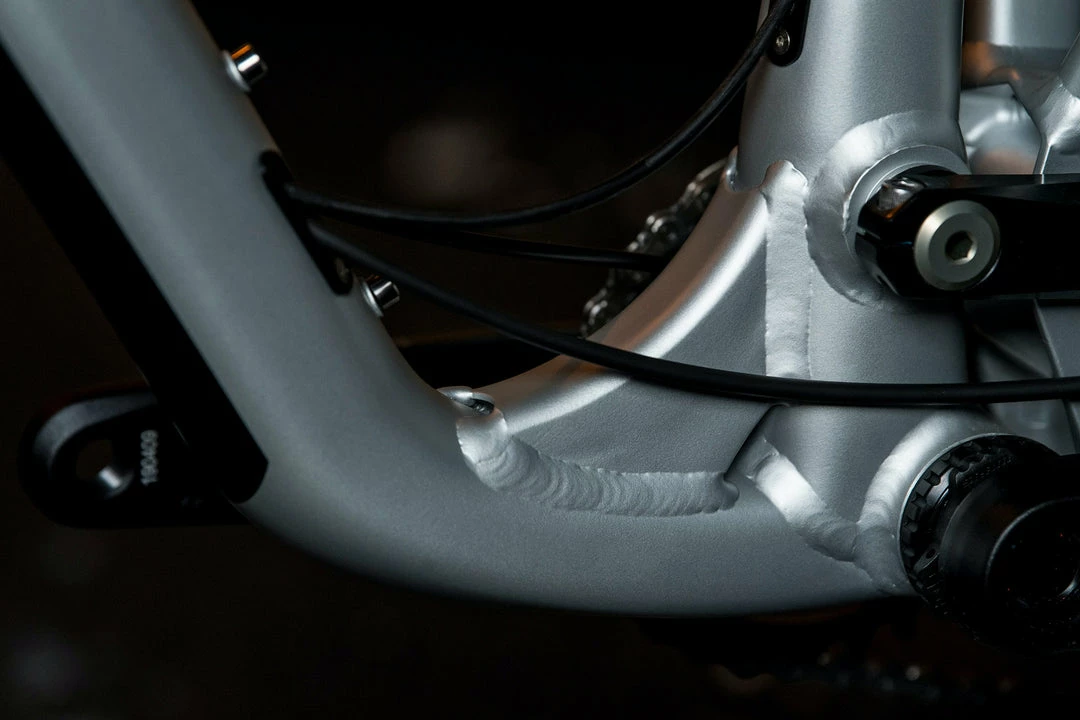

Metal

Over our long tenure from moun­tain biking’s awk­ward ado­les­cence to its cur­rent any­thing-shred­dy era, we’ve exper­i­ment­ed with steel, alu­minum and tita­ni­um — remem­ber the Bow-Ti, the first super­bike? We remem­ber the met­al times too, and it feels good to offer a pre­mi­um ride expe­ri­ence to our broad­en­ing fam­i­ly of rid­ers, cour­tesy of durable, afford­able alu­minum alloy.

Modern Geometry

With a steep, 76-degree seat tube angle and a rangy but not stratos­pher­ic reach, the Rip­mo AF places rid­ers cen­tral­ly and upright over the bot­tom brack­et. It makes for an effi­cient posi­tion that can go the long haul with­out plac­ing too much weight on its slack, 64.9-degree head­tube angle. A 44mm reduced-off­set fork is more sure­foot­ed on steep descents and stead­ies high speeds.

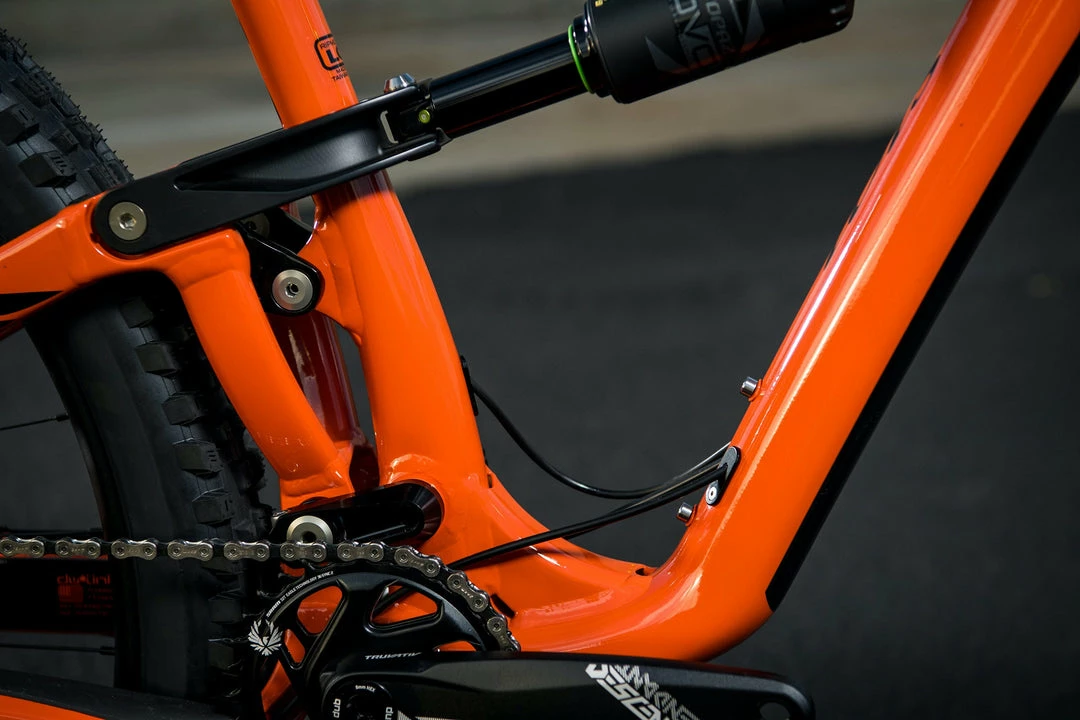

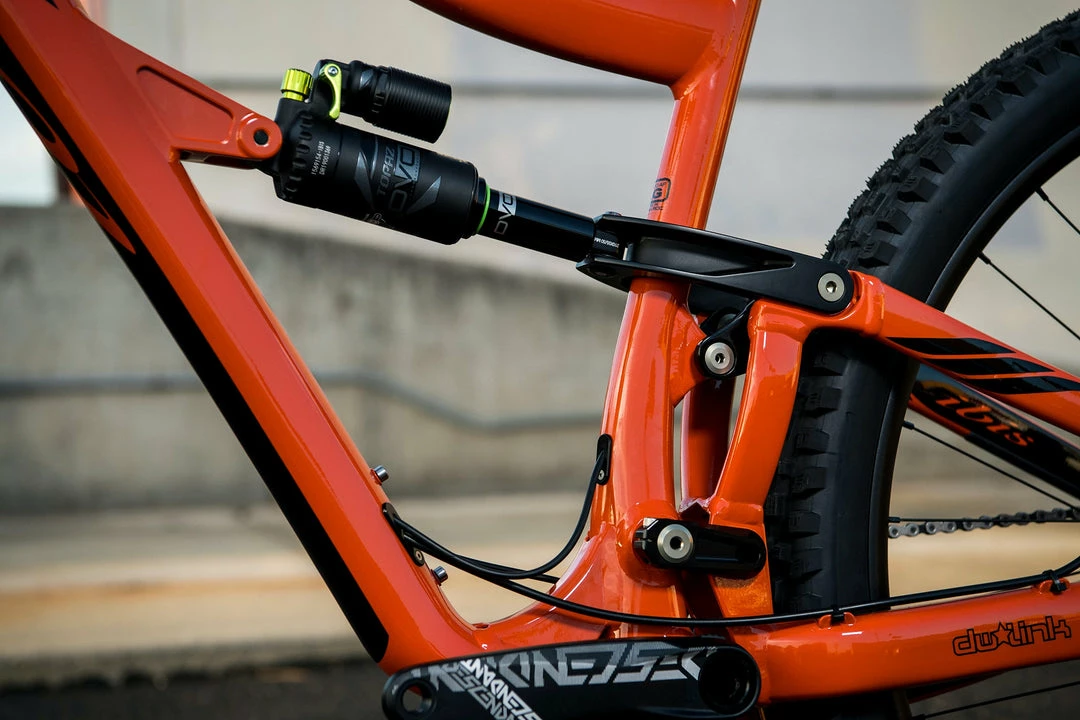

DW Link

It pro­vides an unpar­al­leled com­bi­na­tion of climb­ing effi­cien­cy and down­hill per­for­mance, which has been proven repeat­ed­ly at the high­est lev­els of racing.

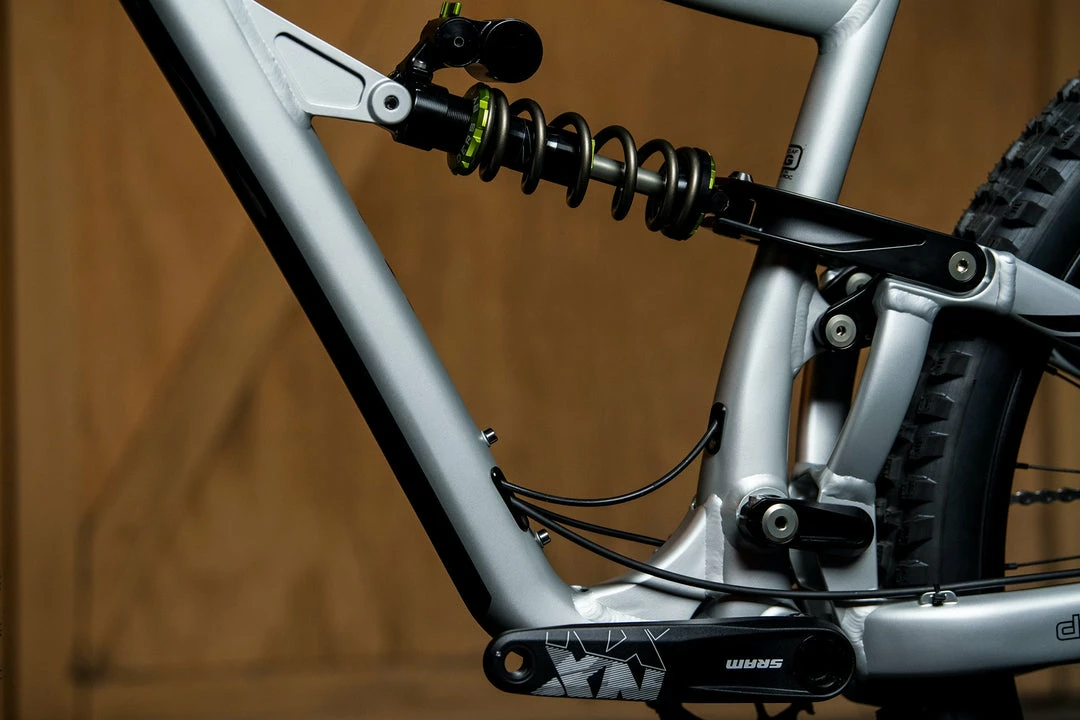

Coil Compatible

The Rip­mo AF is com­pat­i­ble with both coil and air shocks due to a more pro­gres­sive lever­age rate. It allows for coil’s lin­ear­i­ty to thrive and we spec air shocks with tunes that pro­vide pop with­out feel­ing too harsh. On the trail, it gives the sus­pen­sion a sup­ple feel through­out the entire­ty of the stroke, enhanc­ing trac­tion no mat­ter how deep you dig.

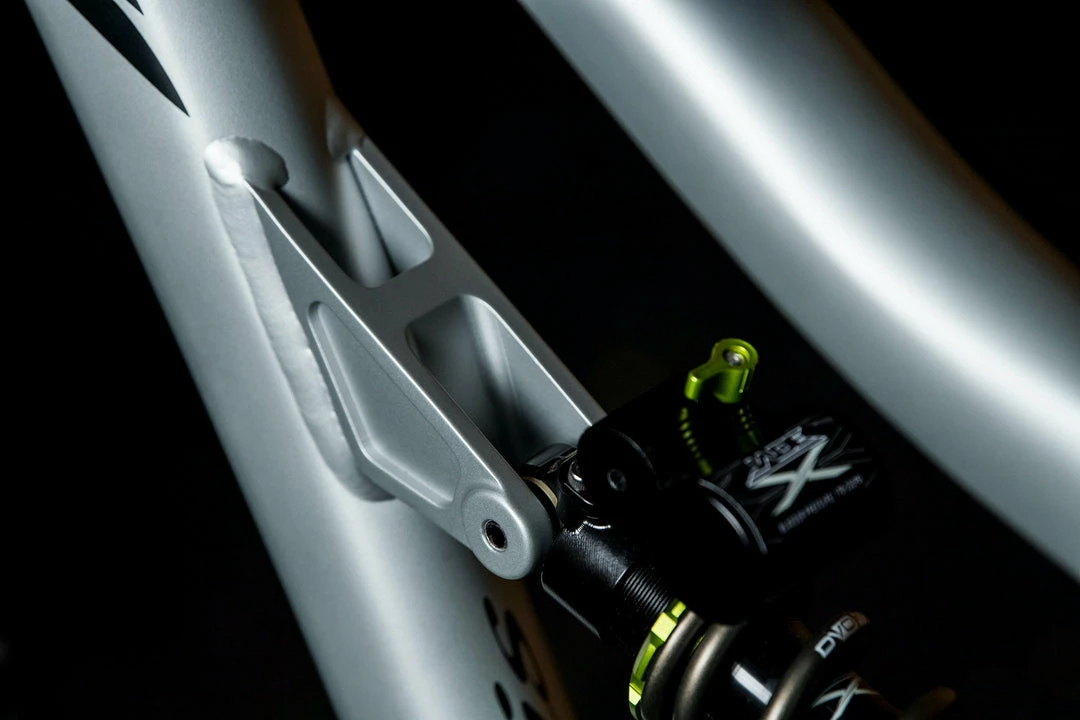

DVO

Now that we made the frames lever­age rate pro­gres­sive enough for a coil we had to find a coil shock that could han­dle the increased stress of being dri­ven off of a cle­vis. The DVO JadeX is up to the chal­lenge so the Rip­mo AF comes with cus­tom tuned DVO suspension.

Specifications

Frame Material	Aluminum
Frame Weight	8.25 lbs / 3.74 kg (size M with DVO Topaz Air)
Wheel Size	29” / up to 2.6″ tires
Front Travel	160mm
Rear Travel	147mm
Shock Specs	210 x 55mm
Boost Axles	148mm rear / 110mm front
Seatpost Diameter	31.6mm
Rear Brake	160mm Post mount / 203mm max rotor
Chainstay Length	435mm
Bottom Bracket	Threaded (73mm English threaded)
Chainline	52mm chainline, 168mm Q Factor
ISCG 05 Compatible	Optional removable adapter
Headset	ZS44 upper / ZS56 lower
Colors	Metal or Red Savina
Sizes	S / M / L / XL
Frame Warranty	7 years



Discover more about the Ibis Ripmo AF Mountain Bike at https://www.ibiscycles.com/bikes/ripmo-af
